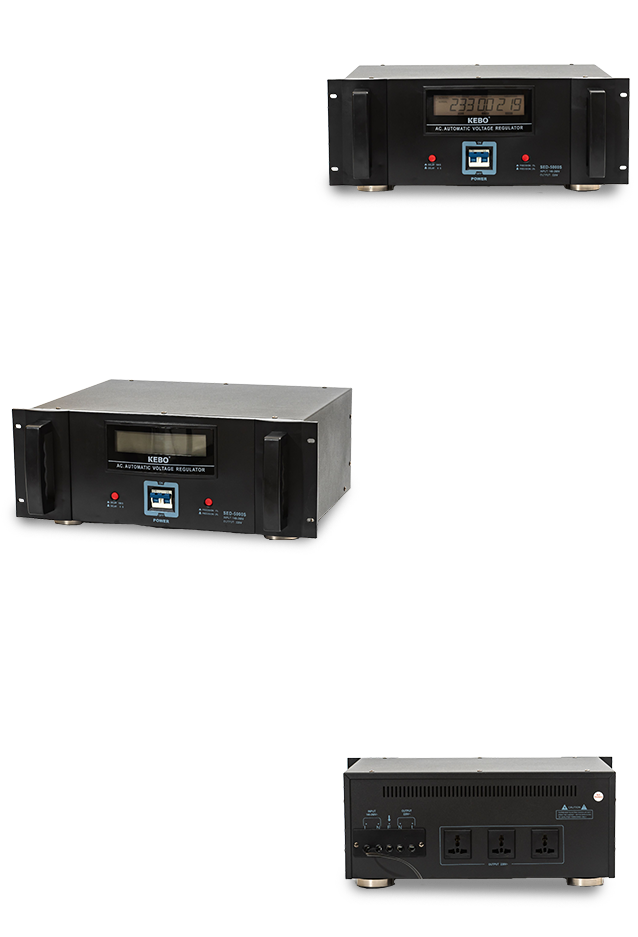

SED
5000VA, 140-260Vac,
Welcome to the SED series from KEBO, where precision meets power. The SED series Servo Motor Type Automatic Voltage Regulators are designed for those who demand accuracy and stability in their power supply. With the ability to achieve an accuracy of ±3% or ±1%, these regulators set a new standard in voltage regulation.
1. Precision Voltage Regulation
The SED series boasts the capability to achieve an accuracy of ±3% or ±1%, making them suitable for applications requiring high-precision voltage control.
2. Servo Motor Technology
Utilizing advanced servo motor technology, these regulators ensure smooth and accurate voltage adjustment.
3. High Efficiency
With an efficiency rating of 98%, these regulators are designed to minimize energy loss while maintaining performance.
4. Smart Fan Cooling
Equipped with a smart fan system that activates at 65°C, ensuring optimal thermal management and extended lifespan.
Specification
| Model | SED-5000 | SED-5000S |
| Power | 5000VA/3000W | 5000VA/3000W |
| Technology | Zero Cross Switching Technology& Digital CPu Control Circuit & Delay Countdown System | |
| Transformer | Copper Servo Transformer | |
| Input Voltage | 140-260Vac,50/60Hz | |
| Output Voltage | 220V/230V,+3%or±1% Selectable | |
| Efficiency | 98% | |
| Phase | Single Phase | |
| Display | ClassicLCD Digital Display | |
| Cooling | SmartFan(Automatic Startup at 65°C) | |
| Protection | High Voltage/Low Voltage (Optional)/Overheat/Overload/Short Circuit/6s or 180s Output Delay | |
| Certification | CE(LVD+EMC) | |
| Unit weight/N.w. | 16.8 kgs | 16.9 kgs |
| Giftbox Size(mm) | 470*530*265 | 470*530*265 |
| Carton Size(mm) | 565*490*215(4) | 565*490*215(4) |
