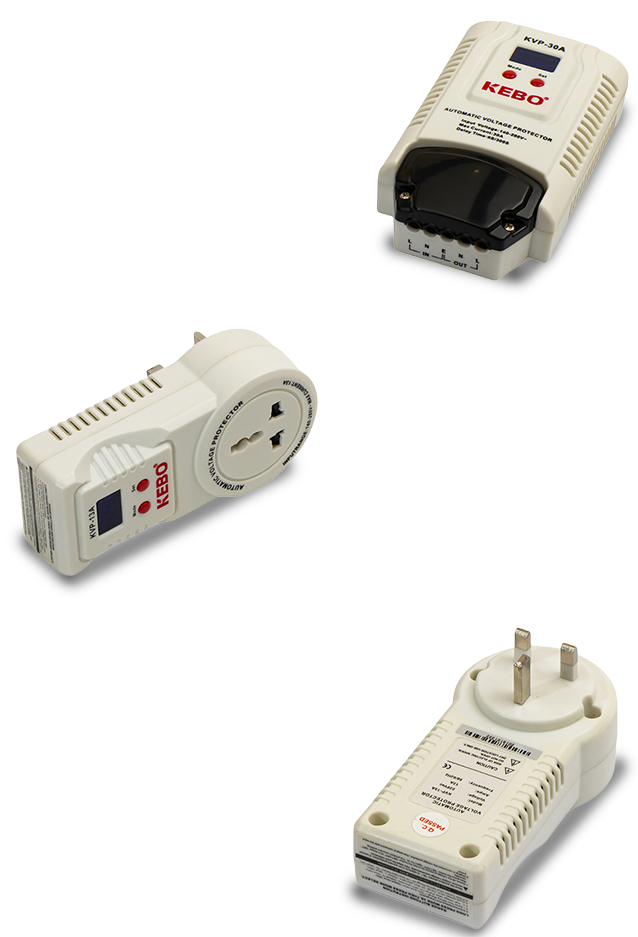

KVP
13A-30A, 140-280Vac,
Designed for precision and reliability, the KVP series offers adjustable settings for delay time and voltage thresholds, ensuring they adapt perfectly to your electrical setup. With comprehensive protection features, they stand as a bulwark against electrical anomalies, keeping your devices safe and operational.
1. Adjustable Delay Time
Allows for customizable response times to voltage fluctuations, enhancing the adaptability to different electrical environments.
2. Selectable High Voltage
Users can choose from a range of high voltage settings, accommodating various power requirements.
3. Selectable Low Voltage
Offers flexibility in managing low voltage scenarios, ensuring consistent performance across different power conditions.
4. Over Current Protection
Protects against overcurrent situations, safeguarding connected devices.
Specification
| Model | KVP-13A | KVP-15A | KVP-20A | KVP-30A |
| Input Voltage | 140-280Vac ±5Vac | |||
| Output Voltage | AC 220V | |||
| Output Current | Max.13A | Max.15A | Max.20A | Max.30A |
| Output Frequency | 50/60Hz | |||
| Functional Settings | - | |||
| 1. Delay Time | 1s~300s Selectable | |||
| 2. High Voltage | 230V-280V Selectable | |||
| 3. Low Voltage | 140V-200V Selectable | |||
| 4.Over Current | 2A-13A Selectable | 2A-15A Selectable | 2A-30A Selectable | |
| Protection | Delay Output/LowVoltage/High Voltage/Overload/Short Circuit/Surge/Spike | |||
| Safety Standard | CE(LVD+EMC) | |||
| Unit weight/N.w. | 0.16 kg | 0.2 kg | ||
| Giftbox Size(mm) | 600*300*240(20) | 530*380*260(20) | ||
