BDR·SBDR

500-10000VA, 100-260Vac, 140-260Vac

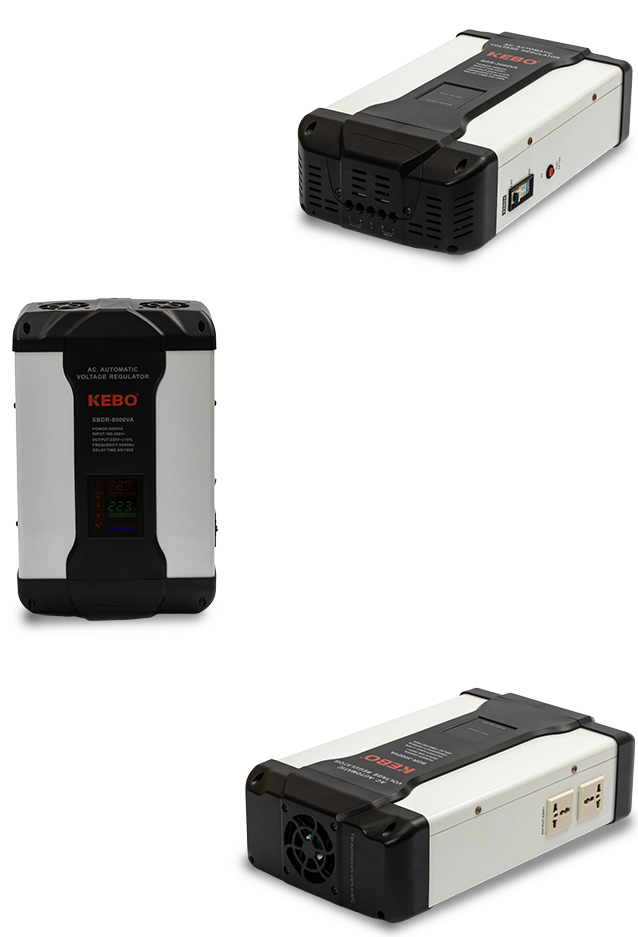

The KEBO BDR and SBDR series Automatic Voltage Regulators are engineered to provide stable and reliable power supply solutions. These regulators are equipped with advanced Zero Cross Switching Technology and a Digital CPU Control Circuit, ensuring accurate voltage regulation and adaptability to varying power conditions.

Consulting

Home

1. Advanced Digital Control

The use of a Digital CPU Control Circuit allows for more accurate and responsive voltage regulation.

2. Energy Efficiency

With an efficiency rate of 98%, these regulators contribute to energy conservation and lower electricity bills.

3. User-Friendly Interface

The Classic Dual LED Digital Display provides clear and easy-to-read voltage readings, enhancing user experience.

4. Robust Protection System

Comprehensive protection features safeguard against various electrical issues, prolonging the life of connected equipment.

Specification

Model	BDR-500VA	BDR-1000VA	BDR-1500VA	BDR-2000VA	BDR-3000VA	BDR-5000VA	BDR-8000VA	BDR-10000VA
Model	SBDR-500VA	SBDR-1000VA	SBDR-1500VA	SBDR-2000VA	SBDR-3000VA	SBDR-5000VA	SBDR-8000VA	SBDR-10000VA
Power	300W	600W	900W	1200W	1800W	3000W	4800W	6000W
Technology	Zero Cross Switching Technology & Digital CPU Control Circuit & Delay Countdown System
Transformer	Toroidal Transformer
Input Voltage	100-260Vac/140-260Vac,50/60Hz
Output Voltage	220V/230V,±10% or 8%
Efficiency	98%
Phase	Single Phase
Display	Classical DualLED Digital Display
Cooling	SmartFan(Automatic Startup at 65°C)
Protection	High Voltage/Low Voltage (Optional)/Overheat/Overload/Short Circuit/6s or 180s Output Delay
Certification	CE(LVD+EMC)
Unit weight/N.w.	2.4 kgs	3.2 kgs	3.9 kgs	5.3 kgs	8.7 kgs	10.7 kgs	14.7 kgs	16.9 kgs
Giftbox Size(mm)	335200138	335200138	390223132	390223132	485290160	485290160	560375210	560375210
Carton Size(mm)	697427164(4)	697427164(4)	807473158(4)	807473158(4)	N/A	N/A	N/A	N/A
